Running AdGuard Home on Kubernetes in 2023

A Step-by-Step Guide on How To Run AdGuard Home on Kubernetes

Recently, I decided to revisit AdGuard Home. I have been trying more and more to put my self-host workloads on my Kubernetes cluster. When you search for “how to run adguard home on Kubernetes” some old and not so helpful articles pop up. I decided it was time for me to dive deep and figure out how I could get this running on my cluster.

Make sure to check out my GitHub so you can grab the files we are going to deploy. I have several directories with Kubernetes manifest files in them.

First, we need a namespace:

adguard-namespace.yml

apiVersion: v1
kind: Namespace
metadata:
  name: adguard

Next, we need the actual deployment:

adguard-deployment.yml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: adguard-deployment
  namespace: adguard
spec:
  replicas: 1
  selector:
    matchLabels:
      app: adguard
  template:
    metadata:
      labels:
        app: adguard
    spec:
      containers:
      - name: adguard-home
        image: adguard/adguardhome:latest
        env:
        - name: AGH_CONFIG
          valueFrom:
            configMapKeyRef:
              name: adguard-config
              key: AdGuardHome.yaml
        ports:
        - containerPort: 53 #dns
          name: dns
          protocol: UDP
        - containerPort: 3000 #initial setup
          name: http-initial
        - containerPort: 80 #web gui
          name: http
          protocol: TCP
        volumeMounts:
        - name: adguard-data
          mountPath: /opt/adguardhome/work
      volumes:
      - name: adguard-data
        persistentVolumeClaim:
          claimName: adguard-pvc

Now when we look at the deployment we can see we will need a few more files, a persistent volume and claim, a configmap, and a service.

Here is the persistent volume and claim:

adguard-pv-pvc.yml

apiVersion: v1
kind: PersistentVolume
metadata:
  name: adguard-pv
  namespace: adguard
spec:
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  hostPath:
    path: "/mnt/data/adguard"
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: adguard-pvc
  namespace: adguard
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi
  storageClassName: "" # your storage class name
  volumeName: adguard-pv

And lastly, we have the service:

adguard-service.yml

apiVersion: v1
kind: Service
metadata:
  name: adguard-service
  namespace: adguard
spec:
  selector:
    app: adguard
  ports:
  - protocol: TCP
    port: 3000
    targetPort: 3000
    name: http-initial
  - protocol: TCP
    port: 80
    targetPort: 80
    name: http
  - protocol: UDP
    port: 53
    targetPort: 53
    name: dns
  type: LoadBalancer

And that should be that. Instead of using “kubectl apply” (cringe bruh), I used Argo CD to deploy. You can hit the LB IP to set up AdGuard home.

Three things to note here:

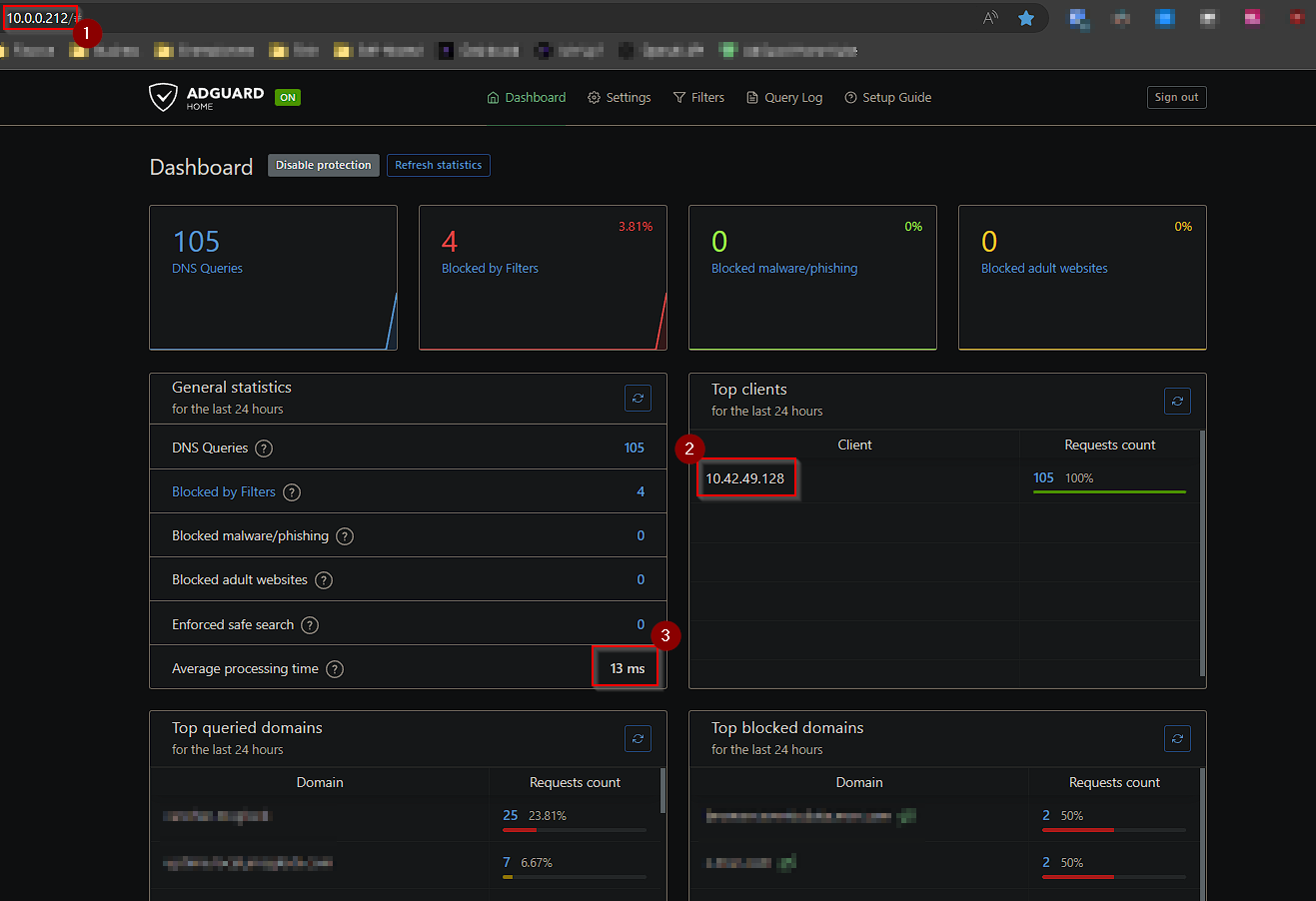

1. I used the LB service type. For LB provisioning I use MetalLB. If you were to deploy this to a cloud, you would use their LB provisioner. In this case, I use 10.0.0.212 as my DNS resolver and as you can see, it works well.

2. Latency appears to be minimal. This can depend on your upstream DNS provider. I need to do more testing to see if there are any use-specific latency issues.

3. The client is the internal IP of the Kubernetes pod. I am not sure how to fix that but I will look into it.

Great! That was really easy! Make sure to let me know if you have any questions or comments!

Cheers,

Joe
